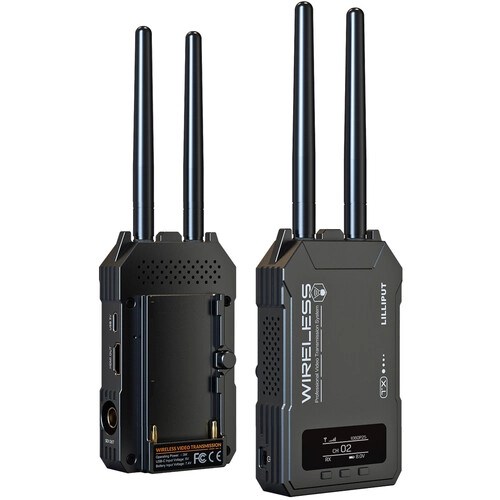

Lilliput WS500 Wireless Video Transmission System
₦982,233.48
– HDMI /SDI wireless transmission
– Low latency 80ms
– Transmission range 500ft
– Auto search for quality channels
– Professional APP for video monitoring
– Compact LED screen
– Dual power supply
Key Features
-
- Up to 500′ Range
- Compact 1080p60 Transmitter & Receiver
- 3G-SDI and HDMI Inputs and Outputs
- Live Streaming via Mobile Device & App
- 13 Channels with Automatic Selection
- Scan QR Code to Link to Mobile Device
- L-Series Battery or USB Type-C Power
- Compact LED Screen
- Quiet, Fan-Less Design
Available on backorder
The WS500 Wireless Video Transmission System from Lilliput features a 500′ line-of-sight range and both 3G-SDI (BNC) and HDMI inputs and outputs. This compact system can be linked to up to three mobile devices, enabling multiple viewers to watch your video feed simultaneously. WS500 system features include an LED status screen, Sony L-Series battery and USB Type-C power options, and 13 channels with automatic selection.
Key Features
-
- Up to 500′ Range
- Compact 1080p60 Transmitter & Receiver
- 3G-SDI and HDMI Inputs and Outputs
- Live Streaming via Mobile Device & App
- 13 Channels with Automatic Selection
- Scan QR Code to Link to Mobile Device
- L-Series Battery or USB Type-C Power
- Compact LED Screen
- Quiet, Fan-Less Design
500′ Transmission Range
SDI and HDMI Input/Output
Mobile Device Streaming
Automatic Channel Selection
App Display Controls
App QR Code Scanning
Compact Design/Dual Power
Display Screen
Be the first to review “Lilliput WS500 Wireless Video Transmission System”
You must be logged in to post a review.
Display
| Panel Type | Transmitter: OLED Receiver: OLED |
| Display Size | Transmitter: 1.3″ / 3.3Â cm Receiver: 1.3″ / 3.3Â cm |
| Resolution | Not Specified by Manufacturer |
| Aspect Ratio | Not Specified by Manufacturer |
| Touchscreen | No |
| Image Controls | Focus Peaking, Pixel Zoom, Zebra |
I/O
| Video | Transmitter: 1 x BNC Input Transmitter: 1 x HDMI Type A Input Receiver: 1 x BNC Output Receiver: 1 x HDMI Type A Output |
| HDCP Support | Not Specified by Manufacturer |
| Embedded Audio | SDI HDMI |
| Audio | None |
| Power | Transmitter: 1 x USB Type-C (5 VDC) Input Receiver: 1 x USB Type-C (5 VDC) Input |
| Other I/O | None |
Wireless
| Wireless Range | 500′ / 152.4Â m (Line-of-Sight) |
| # of Channels | 13 |
| Channel Bandwidth | 20 MHz |
| Frequency Range | 5 GHz |
| Latency | 80 ms |
| RF Power | 17 dBm |
| Wi-Fi | Yes |
Format Support
| Video Format | HDMI/SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/50 720p: 60/50 |
| Audio Format | 24-Bit 48 kHz |
| Timecode Support | No |
Power
| DC Input Power | 5 VDC |
| Battery Type | Transmitter: 1 x L-Series Receiver: 1 x L-Series |
| Power Consumption | Transmitter: 3 W Receiver: 3 W |
Mounting
| Mounting | 1/4″-20 Female |
Environmental
| IP Rating | None |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
General
| Dimensions | Transmitter: 4.4 x 2.6 x 1.1″ / 113 x 65 x 29.2Â mm Receiver: 4.4 x 2.6 x 1.1″ / 113 x 65 x 29.2Â mm |
| Weight | Transmitter: 7.1Â oz / 200Â g Receiver: 7.1Â oz / 200Â g |
