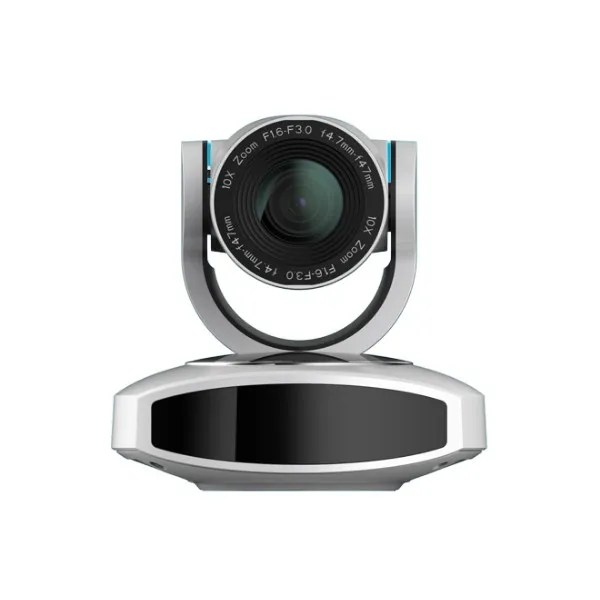

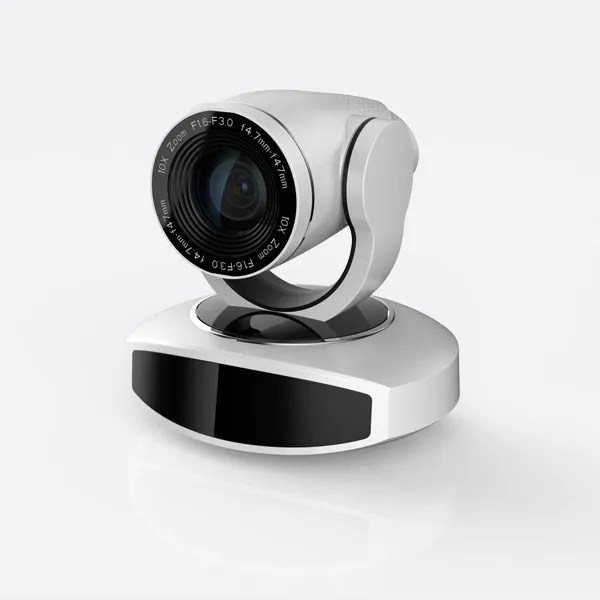

Minrray UV540-05 Full HD PTZ Camera
₦1,480,398.29
Key Features
- Superb High-definition Image. UV540 employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.
- Various Optical Zoom Lens. UV540 has 5X/10Xptical zoom lens for options. 5X zoom lens is with 83.7 ° wide view angle without distortion.
- Trinity image auto-focusing technology. Focus on intelligent image processing, to provide automatic white balance (AWB), automatic exposure (AE), automatic focusing (AF) function, fully automatically adapt to the environment, to achieve the best image effect, perfect trinity image automatic adjustment.
- Low Noise and High SNR. Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
- Low-power sleep function: Support low-power sleep/wake up,the consumption is lower than 400mW under sleep mode
- Wide-range, Quiet and Quick Pan/Tilt Mechanism. By adopting step driving motor mechanism, UV540 camera works extremely quiet and moves smoothly.
- Multiple Preset. Support up to 255 presets (10 presets by remoter )
- Multiple Network Protocol. Support ONVIF,RTSP,RTMP, GB/T28181 protocols and support RTMP push mode, easy to link streaming media server (Wowza,FMS)
Available on backorder
UV540-05 Full HD PTZ Camera
UV540-05 Full HD PTZ Camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.265/H.264 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.
Be the first to review “Minrray UV540-05 Full HD PTZ Camera”
You must be logged in to post a review.
| Model Number | UV540-05 | ||
| Camera Parameter | |||
| Image Sensor | 1/2.8 Inch High Quality CMOS Sensor | ||
| Effective Pixels | 2.07MP, 16:9 | ||
| Video Format | SDI/HDMI Video Output Format
1080P60/50/30/25/59.94/29.97, 1080I60/50/59.97, 720P60/50/30/25/59.94/29.97 USB3.0 Video Output Format 1) USB3.0: 1920X1080P60/50/30/25;1280X720P60/50/30/25; 960X540P30;640X360P30; 640X480P30; 352X288P30; 800X600P30 2) USB3.0compatible withUSB2.0:960X540P30;640X360P30; 1280X720P10/15; 720X576P50； 720X480P60; 640X480P30; 352X288P30; 800X600P30 USB2.0 Video Output Format：- 176×144/320×240/320×180/352×288/640×480/720×480/720×576/ 640×360/800X600/960X540/1024X576/1024X768/1280X720/1920X1080 P30/25/20/15/10/5 |
||
| Optical Lens | 5X
f＝3.1~15.5mm |
|
|
| View Angle | 20°（Tele）
83.7°(Wide） |
||
| Iris | F1.8 – F2.8 | ||
| Digital Zoom | X10 | ||
| Low Illumination | 0.5Lux(F1.8, AGC ON) | ||
| DNR | 2D﹠3D DNR | ||
| White Balance | Auto / Manual/ One Push//3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K | ||
| Focus | Auto / Manual/ One Push | ||
| Aperture/Electronic Shutter | Auto / Manual | ||
| BLC | On/Off | ||
| WDR | OFF/ Dynamic Level Adjustment | ||
| Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve | ||
| SNR | >55dB | ||
| Input/Output Interface | |||
| Model No/Interface | UV540-05-SDI Interface: SDI, LAN(POE), RS232(input & output), A-IN
UV540-05-HDMI Interface：HDMI, LAN(POE), RS232(input & output), A-IN UV540-05-U3 Interface：USB3.0, LAN, RS232 UV540-05-U3+HDMI Interface：USB3.0, HDMI, LAN, RS232 UV540-05-U2 Interface：USB2.0, LAN, RS232 |
||
| Video Stream | Dual Streamoutput | ||
| Image Multi Code Source Output | Supported (SDI/HDMI/USB3.0/USB2.0, LAN can be with different Code Source/TV System) | ||
| Video Compression | H.265, H.264 | ||
| Audio Compression Format | A-in: Double track 3.5mm linear input; | ||
| Audio Output | Audio can be output with image through SDI, HDMI, LAN interface | ||
| Audio Compression Format | AAC, MP3, G.711A | ||
| Network Interface | 100M IP Port (10/100BASE-TX) | ||
| Network Protocol | RTSP, RTMP, ONVIF, GB/T28181; Support VISCA Control Protocol,Support remote upgrade, reboot and reset. | ||
| Control Interface | RS232 | ||
| Control Protocol | Protocol: VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps | ||
| Power Interface | HEC3800 Outlet (DC12V) | ||
| Power Adapter | Input AC110V-AC220V, output DC12V/1.5A | ||
| Power Input | DC12V±10%, 1A(Max) | ||
| Power Consumption | 12W(Max) | ||
| PTZ Parameter | |||
| Pan/Tilt Rotation | -125°~+125°, -30°~+30° | ||
| Pan/Tilt Control Speed | 0.1~65°/Second, 0.1~35°/Second | ||
| Preset Speed | Pan:65°/Second, Tilt: 35°/Second | ||
| Preset Numbers | 255 presets (10 presets by remote controller) | ||
| Other Parameter | |||
| Stored Temperature/Humidity | -10℃~+60℃, 20%~95% | ||
| Working Temperature/Humidity | -10℃~+50℃, 20%~80% | ||
| Dimension | 151.6mmX154.5mmX131.3mm | ||
| Weight | 1.07kg | ||
| Application | Indoor | ||
| Package | Power supply,RS232 control cable, Remote controller, User manual | ||
| Optional Accessories | Ceiling / Wall Mount (Extra Cost) | ||
