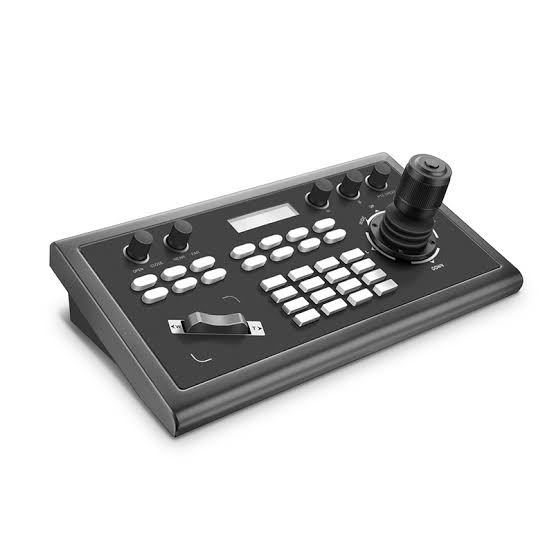

Minrray KBD2000 PTZ Camera Control Unit
₦558,539.58 Inc. VAT
Key Features
-
Generic UV2000 PTZ camera control unit
-
RJ45, RS422, RS232
-
ONVIF, Pelco P / D and Visca support
-
Controls up to 255 cameras
Available on backorder
Supporting ONVIF, VISCA, Serial port VISCA, PELCO‐D/P protocols
RJ45, RS422, RS232 control interfaces
Controls up to 255 cameras
Unique control code learning function allows customers to modify the control code instructions
Any device on the RS485 bus can be individually configured with different protocols and baud rates
All camera parameters can be set through the button operation
Metal shell, silicone keys
LCD display, keypad sound prompt, real‐time display decoder and matrix working status
4D joystick allows variable speed control to cameras
Maximum communication distance: 1200 meters (using 0.5mm Twisted‐Pair Cable
Be the first to review “Minrray KBD2000 PTZ Camera Control Unit”
You must be logged in to post a review.
Ports
Network: RJ45
Serial: RS422, RS232
Protocols
Network: ONVIF, VISCA
Serial Port: VISCA, PELCO‐D, PELCO‐P
Communication speed, bps: 2400, 4800, 9600, 19200, 38400, 115200
Interface: 5PIN, RS232, RJ45
Joystick: 4D (up, down, left, right, zoom, lock)
Display: LCD Blue Screen
Prompt tone: ON/OFF
Power Supply: DC12V+/-10%
Power Consumption: 6W MAX
Working Temperature: ‐10oC~50oC
Storage Temperature: ‐20oC~70oC
Environment humidity: ~90%RH (nodew)
Dimensions: 320mm(L) x 179.3mm(W)x 109.9mm(H)
