AVMATRIX PTZ2870 Full HD PTZ Camera (30x Optical Zoom)
₦2,242,114.47
Key Features
-
- 1080p60 HDMI/USB 3.0 | 1080p30 USB 2.0
- LAN Port for RTMP/RTSP/ONVIF Streams
- 30x Optical/10x Digital f/1.6-4.7 Zoom
- VISCA, PELCO-D, PELCO-P Control
- Autofocus, up to 255 Presets
- 12V Power Adapter
Available on backorder

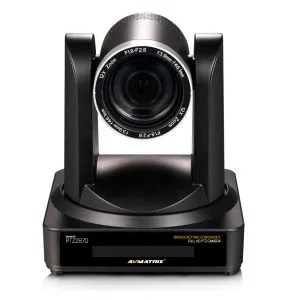

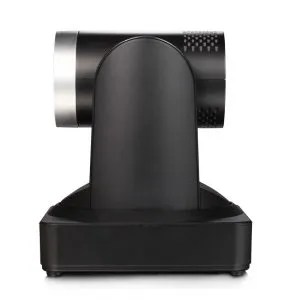

The black PTZ2870 Full HD PTZ Camera from AVMATRIX offers precision control and multiple output ports offering up to 1080p60 video. Designed for broadcast, security, and teleconferencing needs, the PTZ2870 also supports VISCA, PELCO-D, and PELCO-P control protocols. The integrated f/1.6-4.7 lens offers 30x optical and 10x digital zoom functions. This camera supports up to 1080p60 video output via its HDMI and USB3.0 outputs, up to 1080p30 via its USB 2.0 port, and has a LAN port for streaming via RTMP, RTSP, or ONVIF.
Quick pan and tilt speeds and picture controls like brightness, color, saturation, contrast, sharpness, and gamma provide precision control of your images. The PTZ2870 camera supports up to 255 presets with up to 10 selectable using the included IR remote control. A 1/4″-20 thread on the camera bottom can be used for mounting. The PTZ2870 comes with a 12V adapter, an RS232 control cable, and a USB 3.0 cable.
Features
Be the first to review “AVMATRIX PTZ2870 Full HD PTZ Camera (30x Optical Zoom)”
You must be logged in to post a review.
Image Sensor
| Image Sensor | 1-Chip 1/2.8″ CMOS Sensor |
| Sensor Resolution | Effective: 2.07 Megapixel |
| Signal-to-Noise Ratio | 55 dB |
| Minimum Illumination | 0.5 Lux |
| White Balance | 3000 to 6500K |
Camera
| Max Digital Zoom | 10x |
Lens
| Optical Zoom Ratio | 30x |
| Focal Length | 4.3 to 129mm |
| Field of View | 2.34 to 65.1° |
| Maximum Aperture | f/1.6 to 4.7 |
| Focus Control | Autofocus |
Video Output
| Output Formats | HDMI, USB: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps USB: 1920 x 1080p at 25, 29.97, 30 fps |
| IP Streaming | ONVIF, RTMP, RTSP: 1080p |
Control
| Presets | 255 via RS-232, VISCA 10 via IR |
| Move Speed | Pan: 0.1 to 180°/sec Tilt: 0.1 to 80°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | Pelco-D Pelco-P VISCA |
Interfaces
| Video Output Connectors | 1 x HDMI Type A 1 x USB 3.0 Type-C (USB Video) 1 x USB 2.0 Type-A (USB Video) |
| Control Interface | 1 x RJ45 (Pelco-D, Pelco-P, VISCA) 1 x 8-Pin Mini-DIN (RS-232) Input |
Power
| PoE Support | Yes |
| Power Connectors | 1 x Barrel / Coaxial (12 VDC at 1 A) |
General
| Tripod Mounting Thread | 1 x 1/4″-20 Female |
| Dimensions | 6.6 x 5.9 x 5.9″ / 167.5 x 150 x 150 mm |
| Weight | 3.08 lb / 1.4 kg |
