Blackmagic Design SmartView 4K

₦2,897,744.53 Inc. VAT

Key Features

- features multi rate 12G-SDI
- an extremely bright display with wide viewing angle
- advanced broadcast features
- compatible with all SD, HD and Ultra HD formats
- used in broadcast studios or on set.

Available on backorder

Category: Displays & Monitors Tags: blackmagic, monitor, smartview Brand: Blackmagic Design

The world’s first full resolution Ultra HD broadcast monitor with multi rate 12G-SDI, an extremely bright display with wide viewing angle, plus advanced broadcast features like 3D LUT support, H/V delay, blue only, adjustable frame guides and more! SmartView 4K is compatible with all SD, HD and Ultra HD formats up to 2160p60. With both AC and DC power connections, SmartView 4K can be used in broadcast studios or on set.

Reviews

There are no reviews yet.

Be the first to review “Blackmagic Design SmartView 4K” Cancel reply

You must be logged in to post a review.

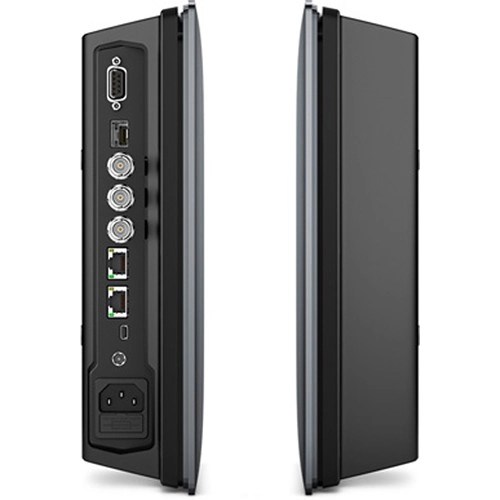

Connections

SDI Video Input

2 SDI inputs automatically switch between SD, HD, 3G, 6G and 12G-SDI. Reclocked video output.

Optical Video Input

SFP Optical Fiber connector cage.

SDI Video Output

Automatically switches to input selection.

Multi Rate Support

Auto detection of 4K, 2K, HD or standard definition inputs.

Updates and Configuration

USB

Ethernet

Gigabit ethernet with loop through.

Tally

9-pin D connector

Standards

SD Format Support

525i59.94 NTSC, 625i25 PAL

HD Format Support

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

2K Format Support

2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98, 2KPsF24, 2KPsF25, 2KPsF29.97, 2KPsF30

Ultra HD Format Support

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60

4K Format Support

4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level A and B, SMPTE 425M, SMPTE 2082.

SDI Color Space

REC 601, REC 709

SDI Auto Switching

Automatically selects between SD, HD, 3G, 6G and 12G-SDI.

Video Sampling

4:2:2 and 4:4:4

Software

Internal Software Upgrade

Via included firmware updater software.

Settings Control

Via USB or Ethernet.

Display

Display Element

15.6″ TFT Active Matrix LCD

Display Resolution

3840 x 2160 pixels

Response

25 ms

Contrast Ratio

1000:1

Color Depth

16.7 million colors

Power Requirements

Power Supply

Built in IEC 100 – 240V AC power supply, plus DC input jack for external power.

Power Consumption

24 Watts

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)

Relative Humidity

0% to 90% non-condensing
